Firefly Phototherapy

A highly effective phototherapy device designed for treatment of neonatal jaundice.

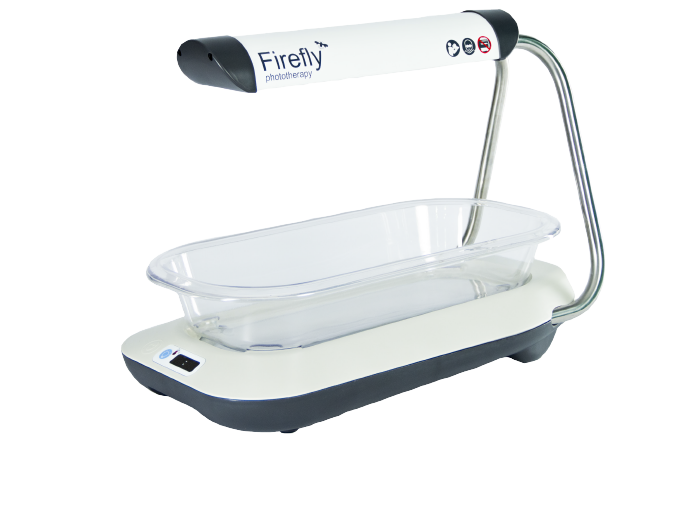

The MTTS Firefly is a state-of-the-art phototherapy device designed for effective treatment of neonatal jaundice. Developed in collaboration with Design that Matters (Massachusetts, USA), and East Meets West Foundation (California, USA), the machine features intuitive design, double-sided lighting, compact size, user-friendly control panel, and removable single-infant bassinet. Firefly is designed to treat newborn jaundice in the mother’s room – the best way to support mother-child bonding and breastfeeding.
Clinical evaluations indicate that Firefly’s double-sided design reduces total treatment time by 40% on a typical patient compared to single-sided LED phototherapy, allowing earlier discharge from the hospital, lowering incidence of newborn infection and freeing resources to treat more infants.

CE Mark with Number




Quality


The Firefly was designed through a partnership between MTTS,  Design that Matters (Massachusetts, USA), and East Meets West Foundation (California, USA).

Innovation


The Firefly key innovation is to use top and bottom phototherapy with long-life, high power LEDs, providing intensive treatment in a compact package.

Care


The Firefly can be installed directly in the mother’s recovery room, thus promoting mother-child bonding, regular breast-feeding and close maternal supervision.

Key Features


Overall

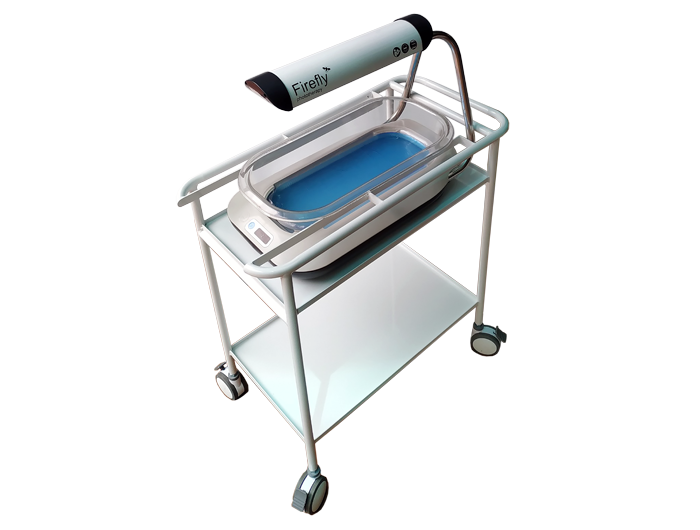

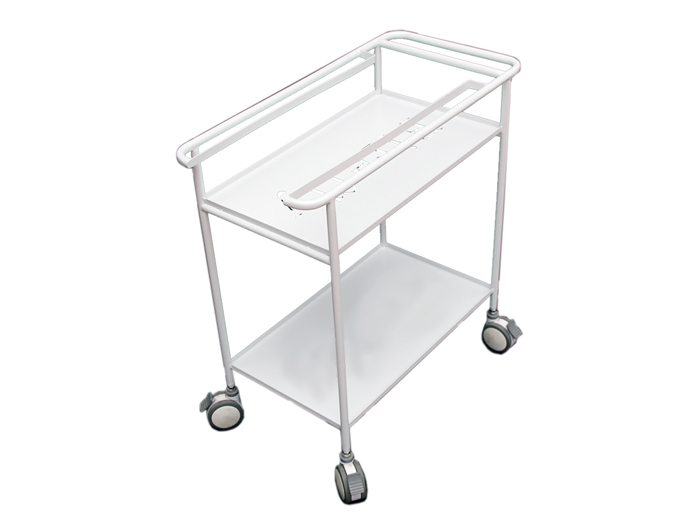

Compact form fits in an infant cart or mother’s bed.
Handholds facilitate easy portability.
Tight seams to prevent dirt build-up.
Curved surfaces for easy cleaning.
Sealed to keep out dust, and liquids (IPX3).
No moving parts, no internal fans.
Medical-grade power supply (not pictured).

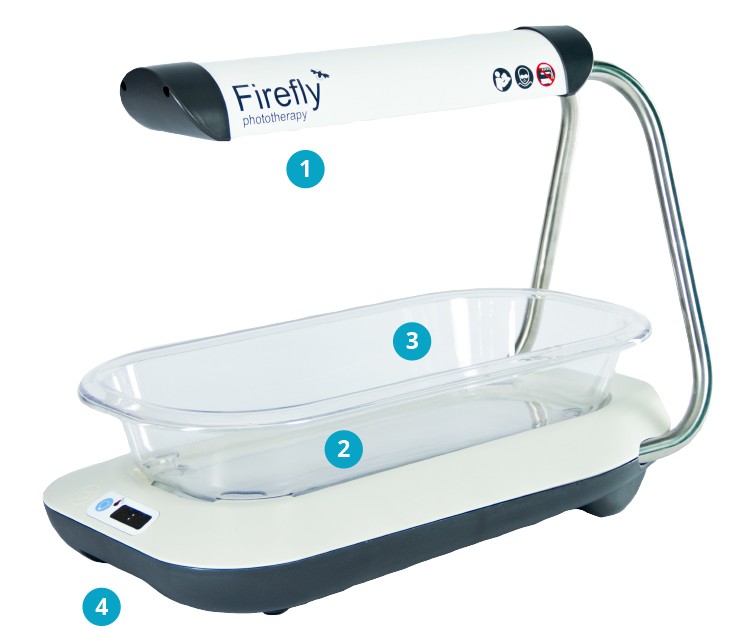

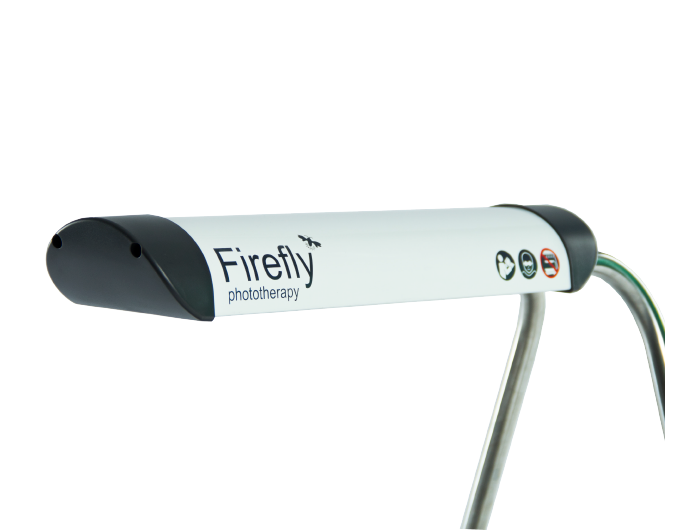

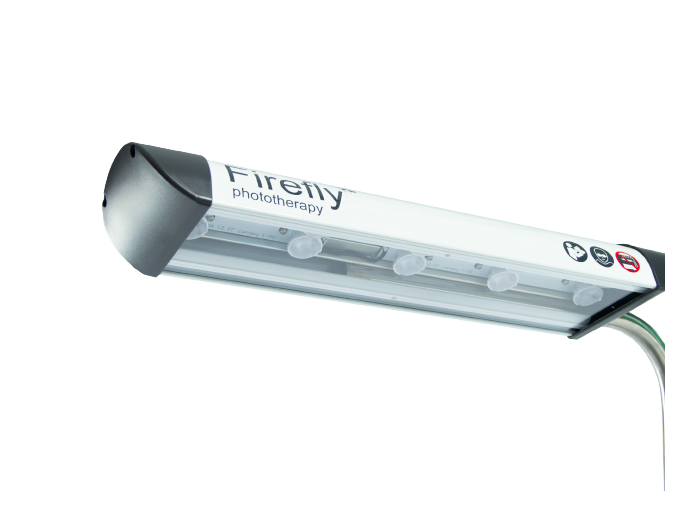

1. Top Light
Fixed at the most clinically effective height.
Slim form for easy patient observation.

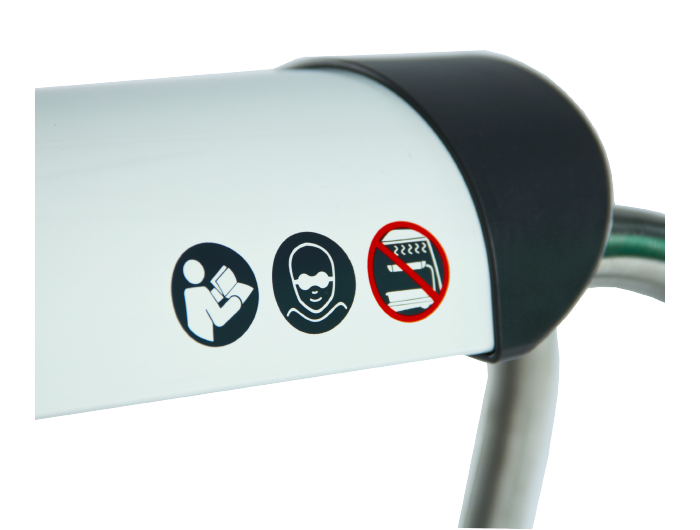

Curved top prevents placement of objects that may fall on the infant.
Soft edges to protect infant during placement.

2. Bottom Light
Durable thick-walled plastic.
Tilted bottom directs heat off back edge of device.

3. Bassinet

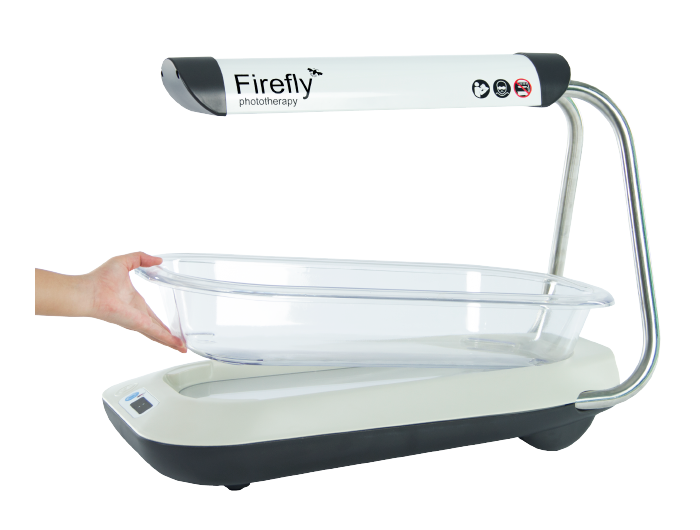

Removable for patient transport and diagnostics.
Comfortable handhold around the rim.
Clear scratch-resistant plastic for easy observation.
Smooth surface for quick wipe-down.

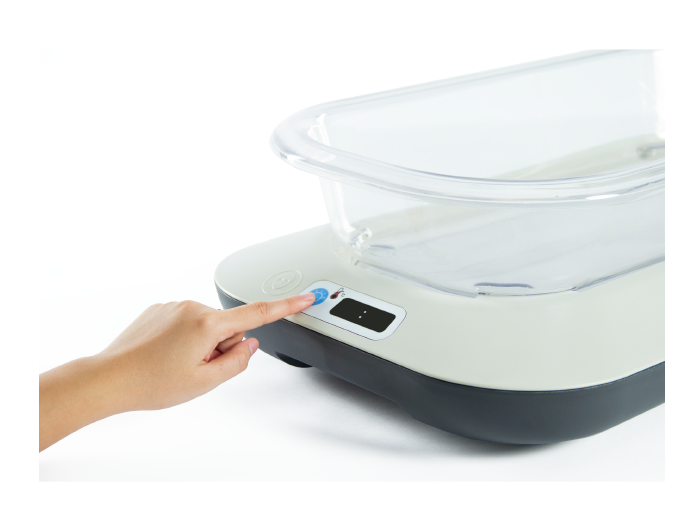

4. Control Panel
Single power button controls both lights.
Single light intensity setting.
Treatment hours and total device hours display.

firefly

Effective


The Firefly provides high-intensity light output in an intuitive package. The toplight is fixed at the most effective height for precise delivery of phototherapy.

safe

Compact


The compact form makes the Firefly fit to be used in the mother’s room, even in space-constrained neonatal care settings, promoting a family-centred healing environment.

costefficient

Cost Efficient


The Firefly combines low initial cost with long-life LEDs that operate with only 30 watts and are rated to last up to 44.000 hours before requiring replacement.

Technical Specifications


Dimensions and WeightUnit dimensions (overall)66 cm x 38 cm x 49.5 cm
Unit dimensions (top light)51.6 cm x 12.5 cm x 6.3 cm
Unit dimensions (bottom light)64.7 cm x 38 cm x 10 cm
Shipping (boxed) dimensions45 cm x 73 cm x 55 cm
Net weight13kg
Shipping - gross weight16.5kg
Performance SpecificationsPeak wavelength455 to 470 nm
Lamp duration44,000hrs at max temperature
Average spectral irradiance Top light - 22.4 µW.cm-2.nm-1
Bottom light - 26.5 µW.cm-2.nm-1
Effective surface area Top light - 53 cm x 24 cm
Bottom light - 48 cm x 20 cm
Irradiance uniformity ratioTop light - 0.51 (IEC compliant --> 0.4)
Bottom light - 0.72 (IEC compliant --> 0.4)
Eletrical SpecificationsPower characteristics60W, 100-240VAC, 47/63Hz
COTS External PSInternational medical safety approvals
ANSI/AAMI/EN 60601-1, UL/TUV
Class I construction is standard (ground required)
100k hours MTBF
Energy star efficiency level V compliant
RoHS compliant
Over voltage / over current protection
Environmental SpecificationsOperatingAmbient temp: +10°C to +35°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
Sealing: IPX3
Transport and storageAmbient temp: +10°C to +85°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
ExclusionsNot for use inside an incubator
Not for use inside any radiant warmer

Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing

Ordering InformationFirefly UnitItem Order NoFF1-1000Main Unit

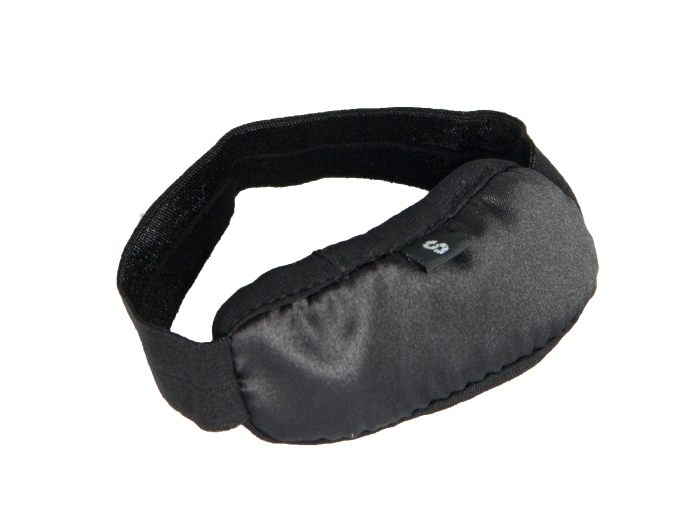

AccessoriesEye patch (S)Item Order NoFF1-1010Size: Small
Eye Patch (M)FF1-1011Size: Medium
Eye patch (L)FF1-1012Size: Large

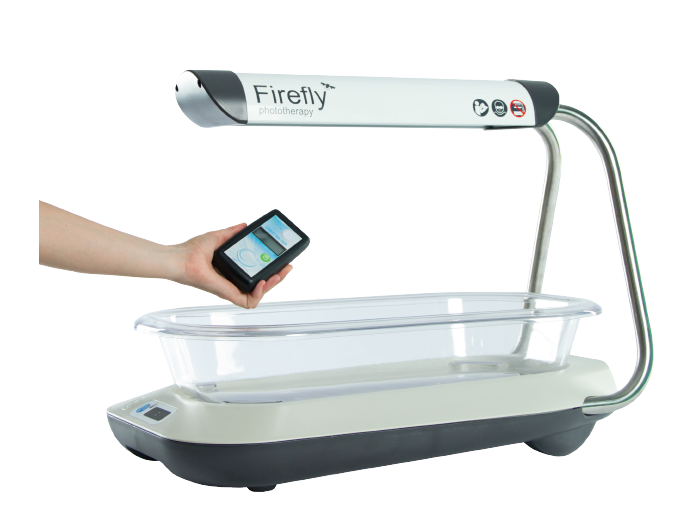

MTTS LightmeterFF1-1020
User ManualFF1-1030English
