Beluga Resuscitator

Compact, portable t-piece resuscitator with oxygen blender and battery backup

Beluga-final

T-piece resuscitator is a device using positive pressure to inflate the lungs of an unconscious patient who is not breathing, in order to keep them oxygenated and alive.

Beluga with its cutting edge design combines oxygen blender and electronic PEEP/PIP setting into a single unit. Driven by battery can be used in the delivery units, NICUs and outside hospital settings in emergency situations.


Quality


Beluga t-piece resuscitator is a precise and reliable device that provides safe and effective therapy, high reliability components and long-life batteries.

Innovation


Beluga uses latest technology and together with user-friendly touch screen interface allows clinicians to save time and focus on the actual problems to solve.

Care


Beluga can be used for emergencies where quick action is required as well as in controlled hospital environment for prolonged period of time.

Key Features


Overall
– Portable
– Build-in battery
– Integrated blender
– Oxygen monitoring
– Easy-to-use touch screen
– Controlled target PIP and consistent PEEP
– No time restriction on use due to the gas tank limitation
– Usable in horizontal or vertical position

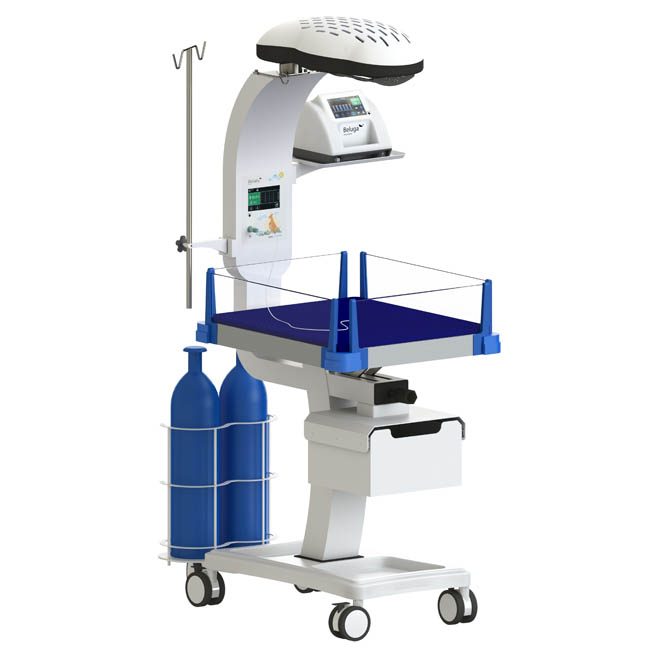

Wallaby-1-650

Effective


Beluga t-piece resuscitator features electronic mixing for easy, independent adjustment of flow rate and FiO2.

safe

Compatible


Beluga combines a compact, quiet, and easy-to-operate technology with precise control of gas flow delivery and oxygen concentration. For added patient safety, Beluga incorporates a full complement of alarms.

costefficient

Cost Efficient


Beluga combines proven clinical effectiveness in respiratory care and low cost consumables with exceptional value.

Technical Specifications


Physical SpecificationsUnit dimensions20 cm x 22 cm x 10 cm
Shipping (boxed) dimensions30 cm x 25 cm x 15 cm
Net weight1.5kg
Shipping weight2.0kg
Performance Specifications Power characteristics100 - 240 VAC, 50-60 Hz
Manometer accuracy± 0.5 cm H2O
Peak Inspiratory Pressure (PIP)5 - 50 cm H2O
Positive End Expiratory Pressure (PEEP)1 - 20 cm H2O
Delivered oxygen concentration21 - 100%
Integrated air compressorBlower
BatteryLi-ion, 12V-4000mAh
Environmental SpecificationsOperating ambient temperature:0ºC to +40ºC
Operating ambient humidity:0% to 90% RH
Transport and storage temperature:-20ºC to +60ºC
Transport and storage humidity:0% to 90% RH
Standard ComplianceEN 60601-1:2006/A1:2013
EN 60601-1-2:2015

Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing

Ordering InformationMTTS Beluga ResuscitatorRES-10000Main Unit
Gas Hose with Oxygen ConnectorCDP-10511DISS 1240
CDP-10512British Standard
CDP-10513JIS
CDP-10514SIS Handwheel
CDP-10515DIN
CDP-10516AFNOR
CDP-10517Ohmeda
Mains power cableCOR-10001EU Standard
COR-10002US/VN Standard
COR-10003UK Standard
COR-10004AUS Standard
COR-10005India Standard
COR-10006Power cable - 12V Car Lighter
AccessoriesReusable tubeRES-10011Tube only
Single use PEEP valve with T-piece
RES-10012Valve + T-piece
Single use T-piece circuitRES-10020Tube + Valve + T-piece
Silicon mask - size S (42mm)RES-10061
Silicon mask - size M (50mm)RES-10062
Oxygen Hose with DISS 1240 connectorRES-10070
Arm BagRES-10080
User ManualRES-11010English
