Impala Ventilator

Invasive and non-invasive ventilator designed for most demanding users

Impala

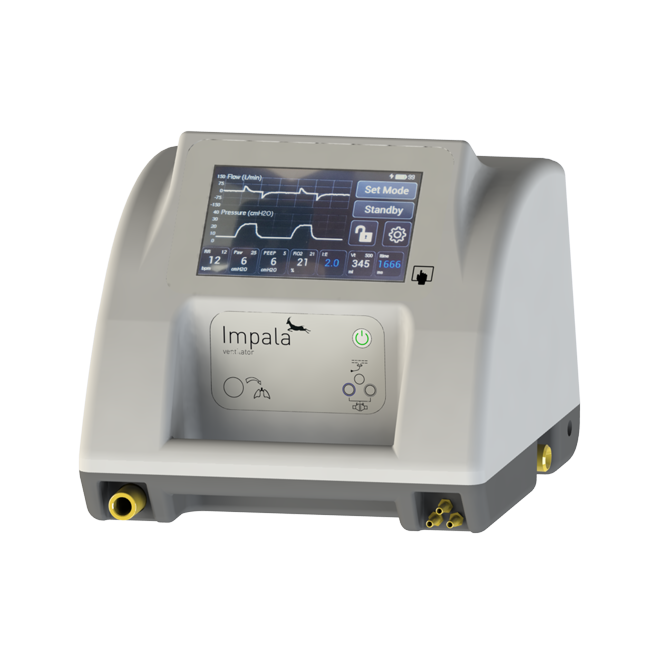

Impala ventilator is an invasive mechanical ventilator with 8 ventilation modes ACVCV, AC-PCV, SIMV-VC, SIMV-PV, VCV/ PS, PCV/PS, CPAP, and BiPAP intended to use in intensive care units or transportation of emergency patients. The device contains a built-in pump, blender, flow, and pressure sensors that allows oxygen-rich (>21% O2) air with accurate Fraction of inspired oxygen (FiO2), pressure and volume to be safely delivered to the patient


Quality


Impala Ventilator is a precise and reliable device that provides safe and effective therapy, high reliability components and long-life batteries.

Innovation


Impala uses latest technology and together with user-friendly touch screen interface allows clinicians to save time and focus on the actual problems to solve.

Care


Impala can be used for emergencies where quick action is required as well as in controlled hospital environment for prolonged period of time.

Key Features


Overall
– Portable
– Suitable for emergencies or intensive care wards
– Build-in battery – 4 hours backup
– Integrated blender
– FiO2 monitoring
– Easy-to-use touch screen
– ACV, SIMV and CPAP modes
– Controlled target PIP and consistent PEEP
– No time restriction on use due to the gas tank limitation

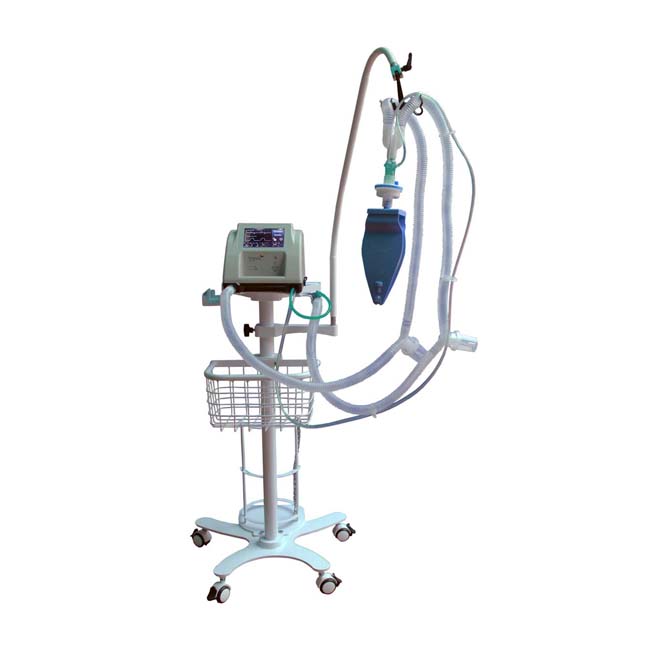

VEN-IMPALA PHOTO 05-1

Effective


Impala ventilator features electronic mixing for easy, independent adjustment of flow rate and FiO2.

safe

Compatible


Impala combines a compact, quiet, and easy-to-operate technology with precise control of gas flow delivery and oxygen concentration. For added patient safety, Impala incorporates a full complement of alarms.

costefficient

Cost Efficient


Impala combines proven clinical effectiveness in respiratory care and low cost consumables with exceptional value.

Technical Specifications


Physical SpecificationsUnit dimensions20 cm x 22 cm x 20 cm
(excluding stand)Shipping (boxed) dimensions30 cm x 25 cm x 30 cm
Net weight3.0kg
Shipping weight4.0kg
Performance Specifications Power characteristics100 - 240 VAC, 50-60 Hz
Ventilation modesACVCV, AC-PCV, SIMV-VC,
SIMV-PV, VCV/ PS, PCV/PS,
CPAP, BiPAP
Respiratory rateAdult:5 - 40 bpm
Neonatal/Pediatric:5 - 120 bpm
Inspiration timeAdult:0.1 - 6 s
Neonatal/Pediatric:0.4 - 6 s
Tidal volumeAdult:5 - 800 ml
Neonatal/Pediatric:5 - 300 ml
PIP2 - 40 cm H2O
Pressure limitation4 - 45 cm H2O
PEEP0 - 25 cm H2O
Delivered oxygen concentration21 - 100%
Integrated air compressorBlower
BatteryLi-ion, 12V-4000mAh
Environmental SpecificationsAmbient operating temperature:0ºC to +40ºC
Ambient operating humidity:0% to 90% RH
Transport and storage temperature:-20ºC to +60ºC
Transport and storage humidity:0% to 90% RH
Standard ComplianceEN 60601-1:2006/A1:2013
EN 60601-1-2:2015

NOTE: Impala does not heat or humidify the gas. These functions required for neonatal and paediatric patients need to be provided externally.
Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing

Ordering InformationMTTS Impala VentilatorVEN-10000Main Unit

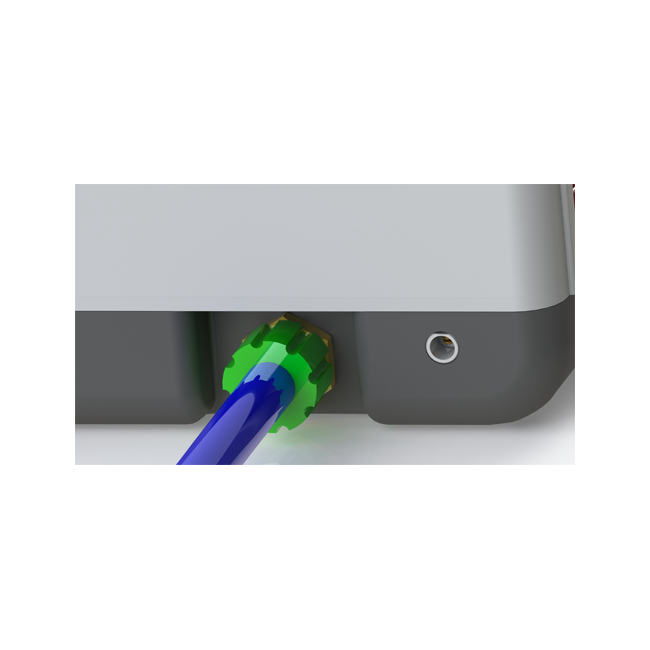

Gas Hose with Oxygen ConnectorCDP-10511DISS 1240
CDP-10512British Standard
CDP-10513JIS
CDP-10514SIS Handwheel
CDP-10515DIN
CDP-10516AFNOR
CDP-10517Ohmeda
Mains power cableCOR-10001EU Standard
COR-10002US/VN Standard
COR-10003UK Standard
COR-10004AUS Standard
COR-10005India Standard
COR-10006Power cable - 12V Car Lighter

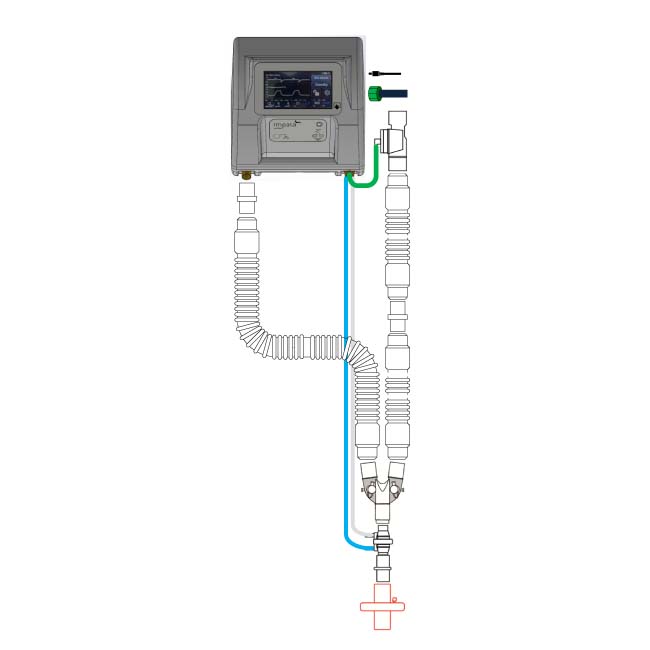

AccessoriesReusable Circuit - adultVEN-10030
Single use Circuit - adultVEN-10040
Single use HME-HEPA filterVEN-10050
Single use 3 in 1 filterVEN-10051
Single use swivel straight connectorVEN-10052
Silicon mask - size 3VEN-10063
Silicon mask - size 4VEN-10064
Silicon mask - size 5VEN-10065
Oxygen HoseVEN-10070
StandVEN-10080
Test LungsVEN-10090
User ManualVEN-11010English
