Colibri Phototherapy

An intuitive LEDphototherapy device designed for effective treatment of neonatal jaundice.

MTTS Product Line

Phototherapy is the most common treatment for reducing high bilirubin levels that cause jaundice in newborns. Colibri Phototherapy is a low-cost, high-performance, and compact overhead phototherapy unit providing high intensity light for treating hyperbilirubinemia. It features long-lasting LED lights, increased surface area, high spectral irradiance, intuitive control panel, compact size, and flexible mounting options to help ensure effective patient dosage and prompt results.
Colibri Phototherapy was designed to be used in combination with any radiant warmer, infant bed or incubator available on the market to deliver effective phototherapy treatment while supporting developmental care. Instead of traditional overhead unit, Colibri Phototherapy has 2 canopies which don’t interfere with radiant warmers and provide maximum exposure to the LED light.

CE Mark with Number


Quality


Colibri Phototherapy is high-power LEDs deliver blue light at 445-465 nm, the optimal light spectrum peak to treat jaundice. They are positioned to offer excellent light uniformity across a large area, enabling full patient skin coverage and effective dosage.

Innovation


Colibri Phototherapy key innovation is to use high-intensity blue LEDs and allow the therapy together with other devices without losing patient exposure to the light source. There is no need for any adjustments when Colibri is used together with radiant warmer.

Care


Designed with functionality and performance in mind, Colibri Phototherapy has an intensive mode for increased delivery of therapeutic light. Its space-saving design allows healthcare professionals to access the patients during procedures while delivering constant phototherapy treatment.

Key Features


Overall
User selectable “standard” and “intensive” modes
Can be used with premature and full term neonates
Compatible with any radiant warmer, infant bed or incubator available on the market
No moving parts, no internal fans

1. LED Lights
Optimal light spectrum for treatment of jaundice
Height adjustment maximizes skin surface area exposure

2. Power Supply
Medical-grade power supply
3 prong connection for safe electrical grounding (Class I)
Energy saving

3. Controls
Removable for patient transport and diagnostics.
Comfortable handhold around the rim.
Clear scratch-resistant plastic for easy observation.
Smooth surface for quick wipe-down.

4. Control Panel
On/off button.
Control button to toggle between normal and intensive mode

5. Display/Indicators
Bright, ‘across the room’ readable LED display shows treatment time
Treatment time counter
Total system time counter (lifetime)
Total intensive mode system time counter (lifetime)
Standard/intensive mode indicator

6. Stand
Adjustable height (115-140cm from the light source) to suit different bed heights
Durable caster wheels with locks

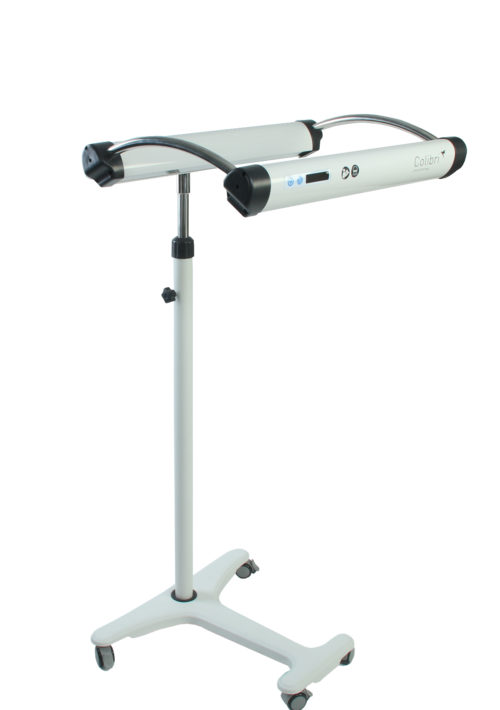

CL-3

Easy To Use


Colibri Phototherapy features a large, bright and easy-to-read LED display that provides a clear indication of lamp usage and treatment time. Its durable caster wheels make Colibri quickly positioned for precise delivery of therapeutic light and easily moved out of the way for patient assessment and care.

safe

Compatible


Colibri Phototherapy stand can be adjusted at to the most effective height to suit different beds and other equipment. The light unit covers a large area and may be placed over any incubator or radiant warmer without the need for being tilted.

costefficient

Cost Efficient


Colibri Phototherapy is an affordable phototherapy device that combines proven clinical effectiveness in jaundice management with minimal power consumption. The high-power LEDs provide up to 44,000 hours of light therapy.

Technical Specifications


Dimensions and WeightUnit dimensions (max height)60 cm x 55 cm x 155 cm
Unit dimensions (min height)60 cm x 55 cm x 130 cm
Shipping (boxed) dimensions24 cm x 105 cm x 68.5 cm
Height Adjustment25 cm
Net Weight16 kg
Shipping Weight23 kg
Performance SpecificationsLight spectrum445 to 465 nm (peak 455 nm)
Lamp duration44,000 hours at maximum temperature
Average spectral irradiance Standard Mode > 30.4 µW.cm-2.nm-1
Intensive Mode > 50.5 µW.cm-2.nm-1
Effective surface area50 cm x 30 cm
Irradiance uniformity ratio0.56 (IEC compliant --> 0.4)
Electrical SpecificationsPower characteristics60W, 100-240VAC, 47/63Hz
COTS External PSInternational medical safety approvals
ANSI/AAMI/EN 60601-1, UL/TUV
Class I construction is standard (ground required)
100k hours MTBF
Energy star efficiency level V compliant
RoHS 2 compliant
Over voltage / over current protection
Environmental SpecificationsOperatingAmbient temp: +10°C to +35°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
Transport and storageAmbient temp: +10°C to +85°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
ExclusionsNone
RegulatoryEN ISO 13485:2012
EN 60601-1:2006/AC2010
EN 60601-1-2:2007/AC2010
EN 60601-2-50: 2009
EN 60601-1-6:2010

Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing

Ordering InformationColibri PhototherapyCL-1000Main Unit
AccessoriesEye patch set (5 pieces)SmallYP-1010
MediumYP-1011
LargeYP-1012
User ManualEnglishCL-1030
FrenchCL-1031
VietnameseCL-1032
