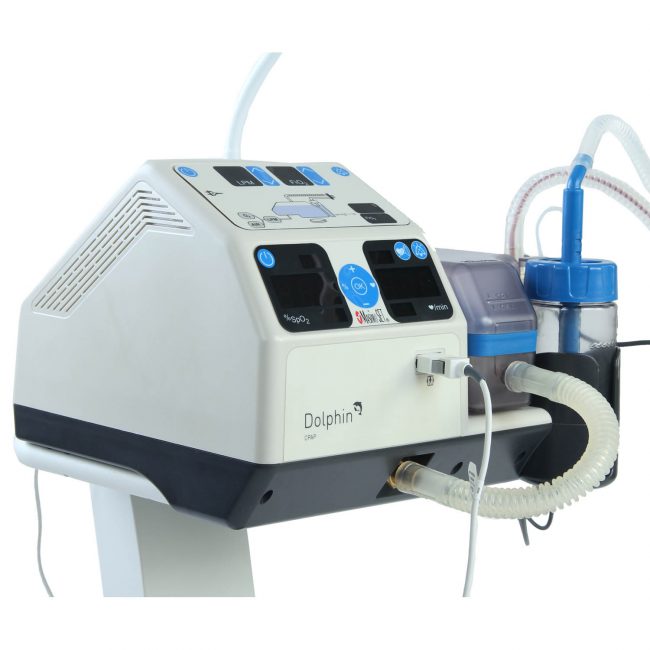

Dolphin CPAP

A next generation bubble CPAP machine that combine the latest in respiratory care and patient monitoring technology with exceptional value.

Continuous positive airway pressure (CPAP) therapy supports the airways of preterm and low-birth weight newborns, who can breathe spontaneously but inadequately. It is a comfortable alternative to relatively invasive therapies, endotracheal intubation and mechanical ventilation.
Dolphin CPAP system is designed to protect compromised airways, enhancing patient comfort and optimizing infant outcomes. Its continuous gentle pressure of air decreases the baby’s work of breathing by keeping the alveoli of the lungs open, enables efficient capillary exchange of oxygen and carbon dioxide to take place, helps establish and maintain functional residual capacity, prevents collapse and upper airway obstruction, and reduces apnoea, bradycardia and cyanotic episodes.


Untitled-1





Brochure

Quality


Dolphin CPAP sets a new standard for neonatal respiratory care, providing a noninvasive, clinically effective and safe therapy to treat newborns and infants with respiratory distress syndrome and other common respiratory pathologies. It accurately mixes air with oxygen, adds humidity to the gas mixture, and then delivers it to the patient at precisely-controlled flow rate.

Innovation

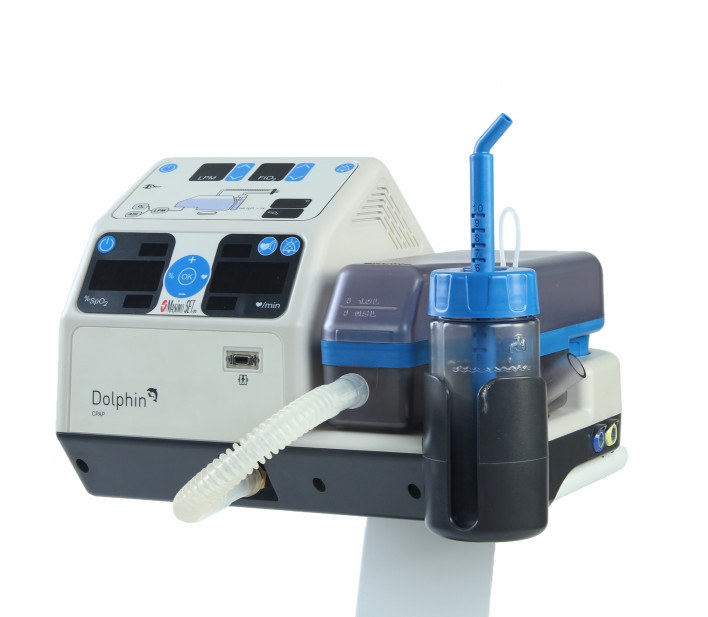

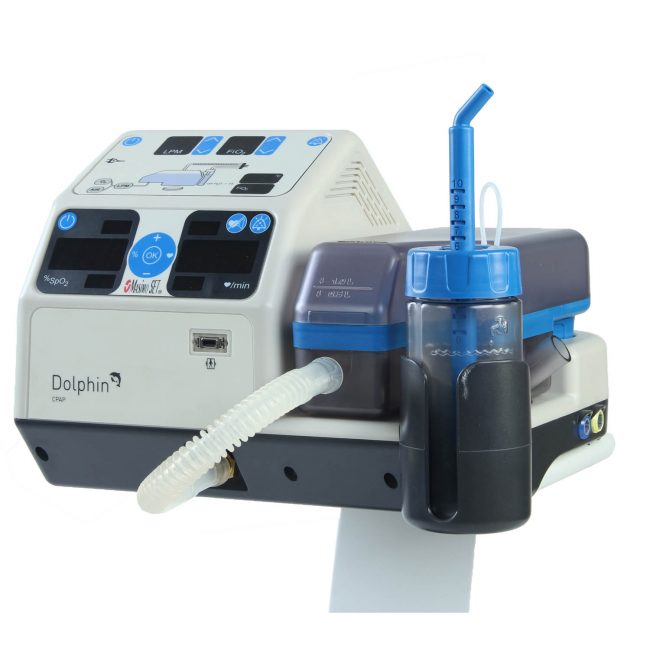

Designed with comfort in mind, Dolphin CPAP technology is a complete all-in-one CPAP treatment and monitoring device. Its integrated design includes gas mixing, humidification, PEEP chamber, air compressor and pulse-oximeter in one compact unit.

Care


Dolphin CPAP delivers high-quality pressure support to even the smallest and most fragile infants. It is suitable even for low birth weight infants and can be administered immediately after birth, ensuring that neonatal energy is reserved for growth and development.

Key Features

Overall
100% reusable and cleanable
Complete all-in-one CPAP treatment and monitoring device
Integrated design includes gas mixing, humidification, PEEP chamber, air compressor and pulse-oximiter in one compact unit

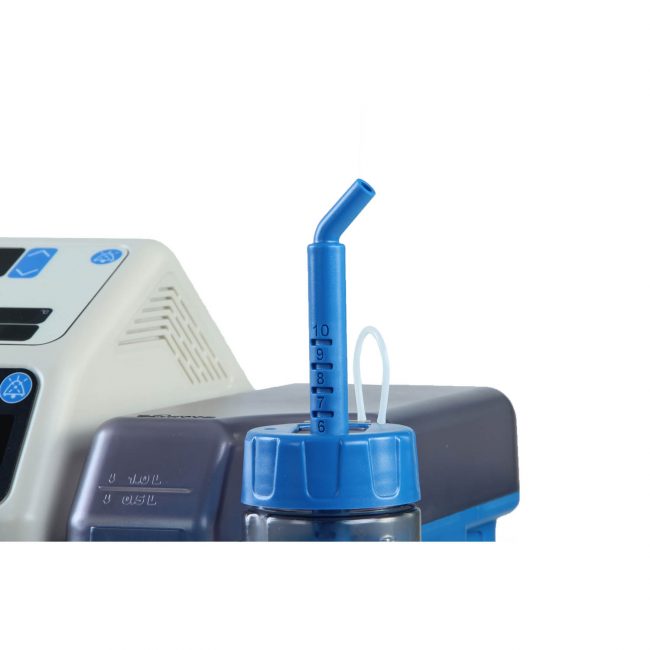

1. PEEP/CPAP
Innovative design for safe and easy one hand adjustment
Easily visible at front of unit

2. Gas Mixing
Electronic mixing for easy, independent adjustment of flow rate and FiO2
Directly set FiO2, no calculations or tables
Internal regulator allows safe connection to a variety of oxygen sources

3. Humidifier
Automatically refills for 3-days continuous operation
Small heated volume for quick warm up
Heater power is automatically adjusted to maintain correct humidity and minimize rain-out

4. Patient Circuit
Completely reusable
Most parts autoclavable
Can be chemically disinfected if autoclave is not available
Includes internal heater wire and temperature sensors
Robust but flexible silicone tubes

5. Pulse Oximeter
Pulse-oximetry integrated into the device
Masimo SET® technology for accurate, reliable, robust measurements
Simple user interface and alarm settings
No multi-level menus or complicated button sequences

6. Air Compressor
Integrated air compressor means there is no need for an external air source
Completely integrated, no messy external wires or tubes
Diaphragm type for clean, long lasting air supply

dolphin-web-1 copy

Easy To Use


The Dolphin bubble CPAP features electronic mixing for easy, independent adjustment of flow rate and FiO2.

safe

Safe


The Dolphin combines a compact, quiet, and easy-to-operate technology with precise control of gas flow delivery and oxygen concentration. For added patient safety, the Dolphin incorporates a full complement of alarms.

costefficient

Cost Efficient


The Dolphin combines proven clinical effectiveness in respiratory care and patient monitoring technology with exceptional value.

Technical Specifications

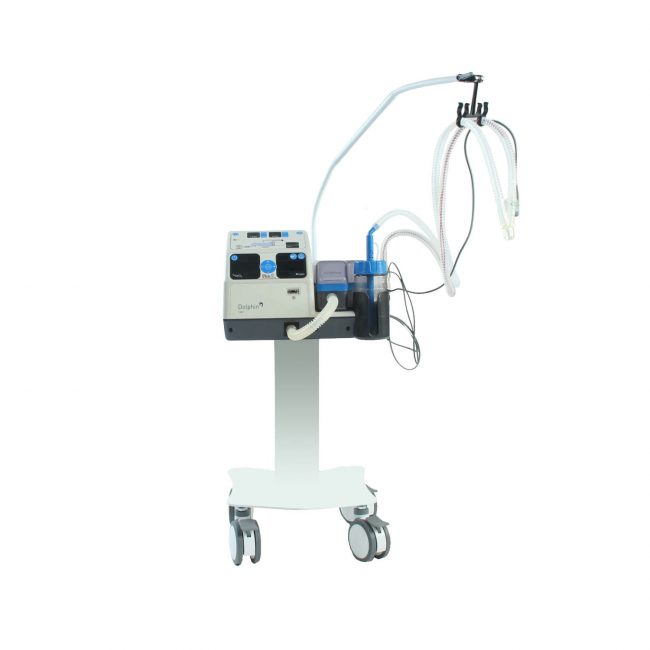

Dimensions and WeightUnit dimensions (excl. support arm)38 cm x 38 cm x 80 cm
Shipping (boxed) dimensions48 cm x 48 cm x 90 cm
Net Weight (with air compressor)15 kg
Shipping Weight (with air compressor)20 kg
Performance SpecificationsPEEP/CPAPType: Bubble
Pressure Range: 0 to 10 cm H2O
Gas MixingType: Electronic
Oxygen Percentage / FiO2: 21 to 100%
Flow Rate: 4 to 9 LPM
Air CompressorType: Diaphragm
Power Supply: Integrated, AC Mains or 12V DC Options
Gas SupplyOxygen Input Range: 25 to 100 psi
Oxygen Connector: DISS 1240
Air Input Range (Optional): 25 to 100 psi
Air Connector (Optional): DISS 1160
HumidifierType: Passover
Humidity: >90% RH
Warm Up Time: <20 minutes at room temperature
Time between Refills: 3 days (approx)
Patient CircuitType: Heated, Reusable
Gas Temperature: 37°C
Pulse-OximeterSPO2 Measurement: 0 - 100% SPO2
BPM Measurement: 0 - 299 bpm
Sensor: Masimo M-LNCS
Electrical SpecificationsPower characteristics150W MAX, 100-240VAC, 47/63Hz
ANSI/AAMI/EN 60601-1, UL/TUV
Class I construction is standard (ground required)
100k hours MTBF
Energy star efficiency level V compliant
RoHS 2 compliant
Over voltage / over current protection
Environmental SpecificationsOperatingAmbient temp: +19°C to +37°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
Transport and storageAmbient temp: +10°C to +85°C
Humidity: 0% to 90% RH non condensing
Atmospheric pressure: 70-106kPa
ExclusionsNone
RegulatoryEN ISO 13485:2012
EN 60601-1:2006/AC2010
EN 60601-1-2:2007/AC2010
EN 60601-1-6: 2010
EN 60601-1-8:2007/AC:2010
EN 60601-2-23: 2000
EN 80601-2-61: 2011
EN 12342:1999/A1:2009
ISO 5356-1:2004
ISO 8185:2007
ISO 10993-5

Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing


Ordering InformationDolphin CPAPCDP-10100
OptionsAir Compressor220V ACCDP-10200
12V DCCDP-10300
Battery Pack50AH (2.5h)CDP-10401
28AH (1.5h)CDP-10402
Gas HoseCompressed OxygenCDP-10501
Compressed AirCDP-10502
Mains power cableEU Type (AL-301)CDP-10601
US/VN Type (AL-201)CDP-10602
UK Type (AL-308)CDP-10603
User ManualENCDP-10701English
FRCDP-10702French
VNCDP-10703Vietnamese
Serviceable PartsHumidifierCDP-108001.5 year
PEEP BottleCDP-109001.5 year
Breathing CircuitCDP-110001.5 year
Oxygen SensorCDP-111002.5 year
Gas FilterCDP-112001 year
Cleaning BrushCDP-113001 year
Air Compressor filter220V ACCDP-102021 year
Air Compressor filter12V DCCDP-103021 year
Air Compressor diaphragm set220V ACCDP-102033 year
Air Compressor diaphragm set12V DCCDP-103033 year
Masimo multisite sensorCDP-114021 year
Consumable PartsMTTS Nasal CannulaSize 0CDP-15000
Size 1CDP-15001
Size 2CDP-15002
